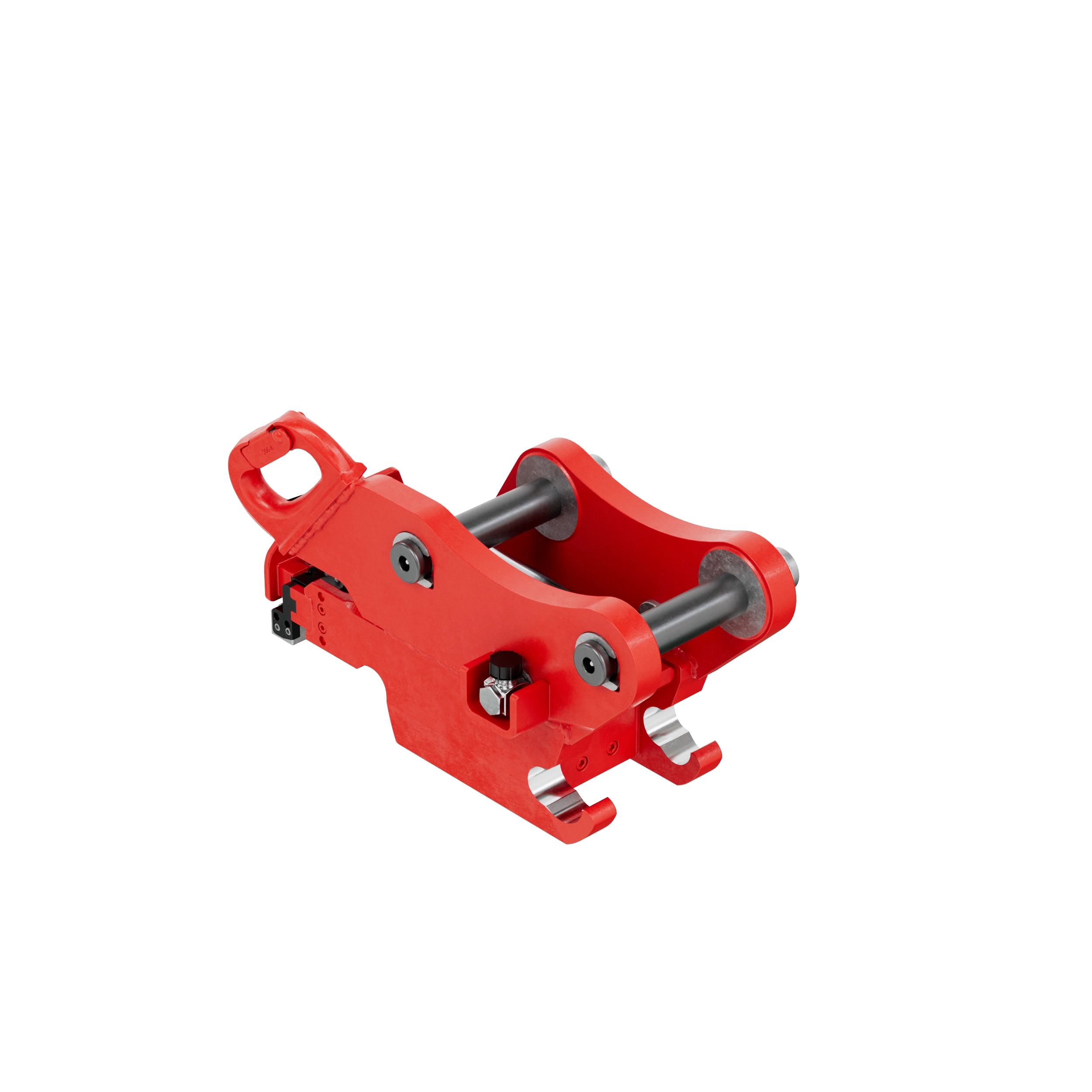

Fully hydraulic quick coupler

plus shipping

Between 1.8 and 26 tons, the MQ is the most economical solution for handling hydraulic attachments such as grabbers or hammers. The advantages of the symmetrical mounting remain for attachments without hydraulics.

Ident-No.:
Anfrage senden Print Page Send by email

Product Details

  • Self-locking – The locking mechanism works via self-locking and does not require high hydraulic forces

  • Safety catch shoes – Safety catch that is always active. The catch shoes are a permanent safeguard against losing the attachments, even with non-hydraulic couplers

  • Visual inspection – Fixed visual inspection, without moving parts, for permanently reliable status monitoring

  • HARDOX 450 – The attachment holder made of wear-resistant material ensures maximum durability

  • Customized – Each quick coupler is adapted to your machine and ensures optimum function.

  • Bolts with lock nuts for secure mounting on the carrier machine and the option of retensioning the system.

  • Safety load hook – for safely moving loads with lifting equipment

Technical Data

Color

3002 Carmine
MARTIN-Attachment

M03, M10, M18, M20, M26
Weight Class [t]

1,8-2,4, 2,5-3,2, 3,3-5, 5,1-7,4, 7,5-10, 13, 16, 19, 22, 26
